General Information
These operating instructions are for the Tracki Slim 4G GPS tracker, which will simply be referred to as ‘tracker’ in the following. They contain important information regarding set-up and operation. Before using the tracker, please read the operating instructions carefully. This particularly applies to the safety notes. Failure to adhere to these operating instructions may result in severe injury or damage to the tracker.
The operating instructions are based on the standards and rules in force in the European Union. When abroad, you must also observe country-specific guideless and laws. keep the operating instructions for future use. If you pass the tracker on to third parties, please be absolute sure, to include these operating instructions.
Initial set-up
Installing and charging the battery
When you unpack the tracker for the first time, the battery is empty. Charge it as follows:
- Connect the charging plug of the charging cable to the tracker with the pogo pins connector.
- Connect the other end of the charging cable to the USB power adaptor and then to the power socket. Alternatively you can also connect the charging cable to a computer.
- Charge the tracker for 4 hours.
- The red light will blink whilst charging. When the tracker is fully charged, the light will turn solid red.
- Disconnect the tracker from the charging cable.
Turning the tracker on
- Take the tracker outside so that it is in the open air.
- Verify tracker is ON by pressing and hold the ON/OFF button. Red light will blink.
- Place the tracker down and leave it for at least 15 minutes. This allows the tracker to perform its initial GPS positioning, which is required for the device to function correctly.
Once completed, the tracker will be ready for use and can be activated.
Please note: this procedure is only required the very first time the tracker is turned on.
Activating the tracker via Web
- Open your internet browser and go to app.tracki.com
- Register and create your Tracki account, then wait for the activation email from Tracki, click on the confirmation link, then login.
- Click on “Add Tracker” and follow the on-screen instructions.
- Insert your tracker IMEI and Device ID, and follow the instructions to activate your service plan.
Activating the tracker via App
- Download the Tracki app from the Apple Store or Google Play.
- Register or log into your Tracki account.
- Tap on "+" icon to add the device and follow the activation instructions.
Device Notification
LOW Battery
When the battery percentage drops to 10%, an alert will be triggered using all the chosen communication methods. The user's specified phone number or email will receive the location details along with a text message.
Zone entry\Zone exit
A geofence is a virtual boundary that can be customized by the user. Whenever the tracker crosses the boundary, whether exiting or entering the defined area, the user will receive a notification within the app. Additionally, the user's specified phone number or email will receive the location information along with a text message.
Please take note that there is a cooldown period of 5 minutes between two consecutive alerts
SOS Key Pressed
When the user holds down the SOS button for a minimum of 2 seconds, both the location information and a text message will be sent using all the chosen communication methods.
Speed LIMIT
Once the user sets a speed limit for the device, they will receive an app notification whenever the tracker exceeds the designated speed. In such cases, the user will also receive the location information and a text message sent to the phone number or email address they have provided.
Please be aware that there is a cooldown period of 5 minutes between consecutive alerts.
Start moving
Once the tracker begins to move, the user will be notified within the app. Furthermore, the location information and a text message will be sent to the phone number or email address that the user has provided.
Please note that there is a cooldown period of 5 minutes between two consecutive alerts.
Light Sensor
Equipped with a light sensor, the tracker can detect if your bag has been opened. In such instances, the user will receive a notification within the app. Additionally, the location details and a text message will be sent to the phone number or email address provided by the user.
Please keep in mind that there is a cooldown period of 5 minutes between two consecutive alerts.
POWER ON/OFF
When the device is fully charged and powered on, a notification will be triggered to inform the user about the device being turned on. Similarly, when the device is shut down, a message will be sent to the user to notify them of the shutdown.

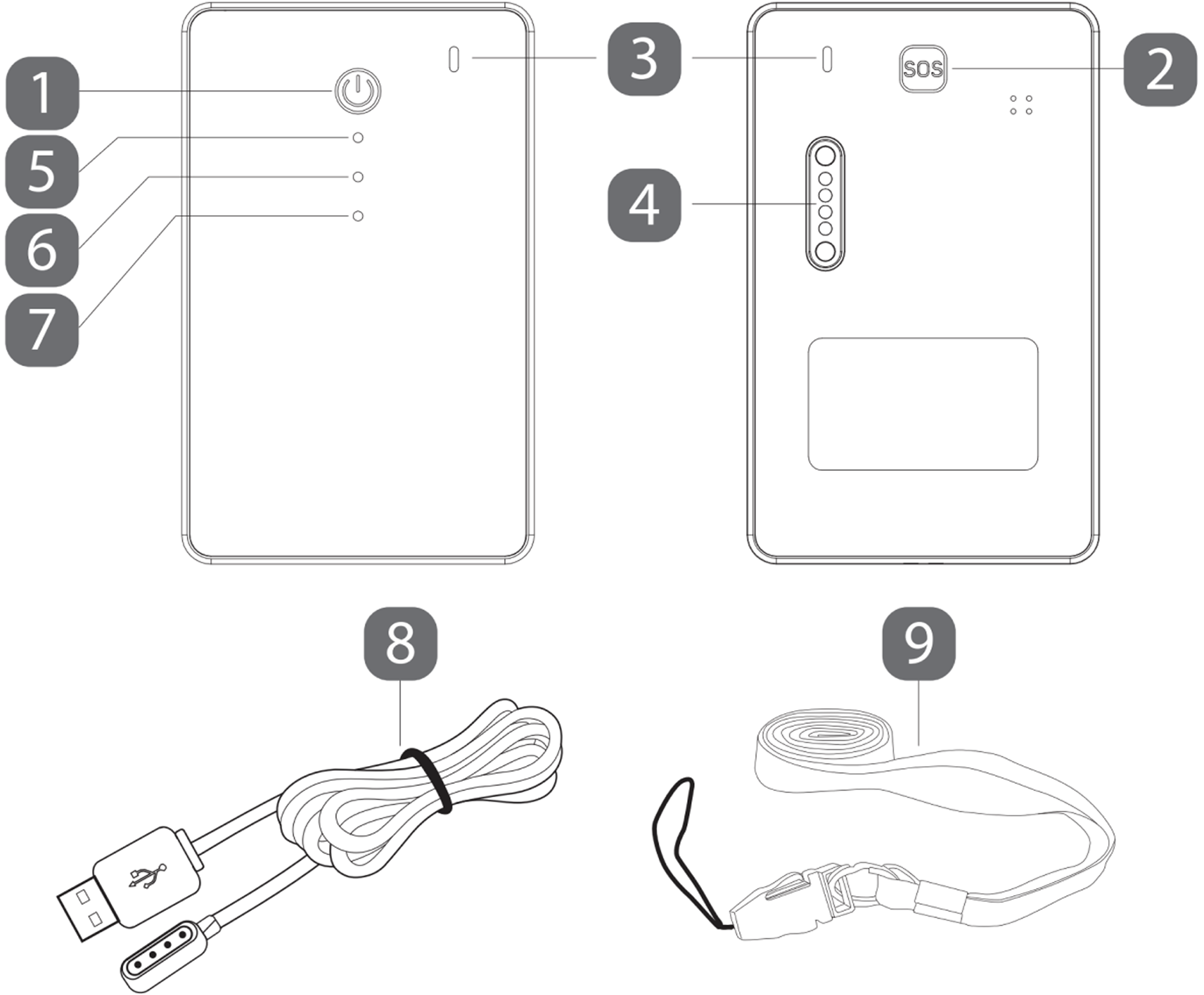

Package contents
- ON / OFF Button
- SOS button
- Light Sensor
- Magnetic charging port
- Green light indicator
- Red light indicator
- Blue light indicator
- Charging cable
- Lanyard

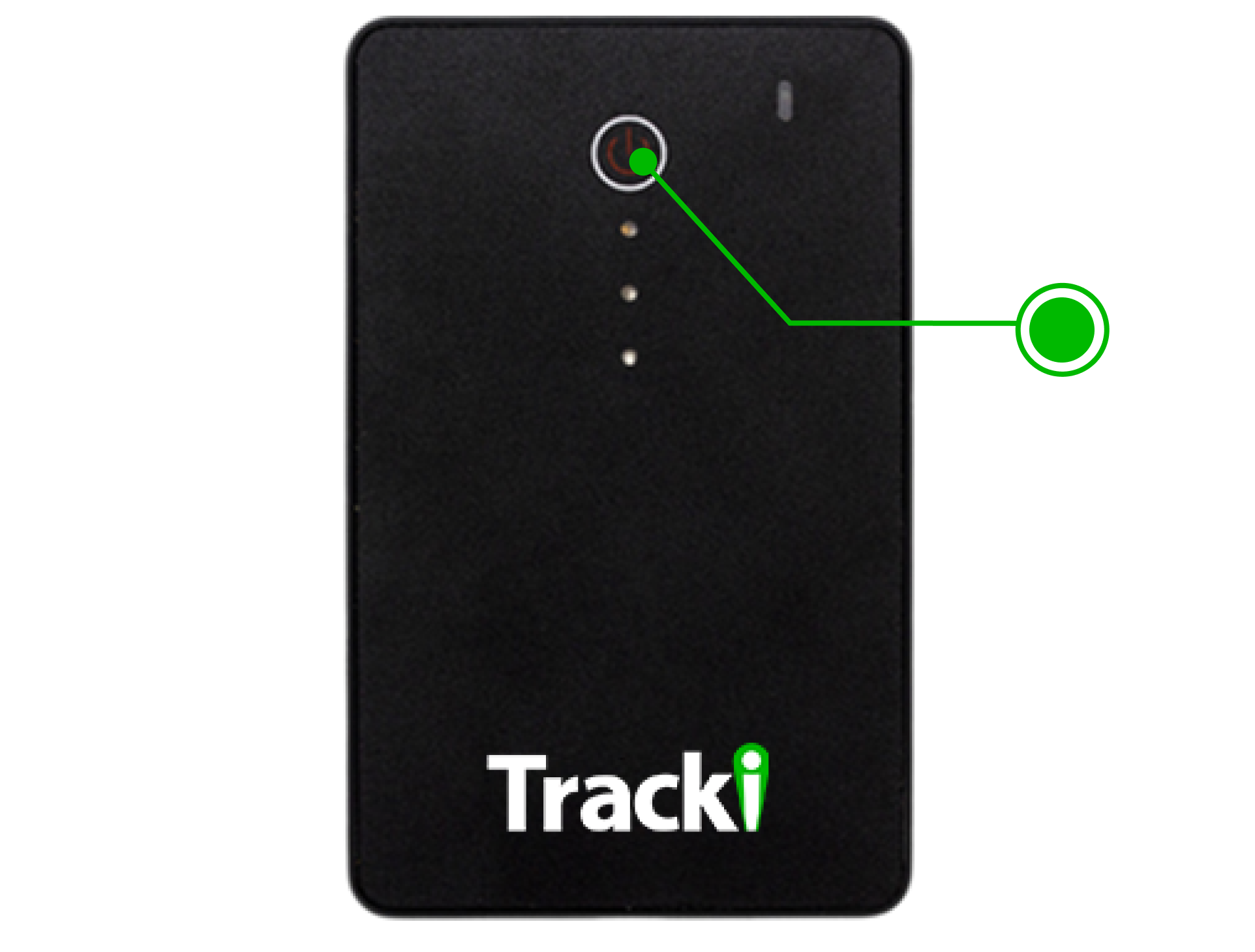

Button Functions
ON / OFF button
Press and hold the ON/OFF button to turn the tracker ON or OFF.
Briefly press the ON/OFF button once to check whether the tracker is on.
Please note: If the green light flashes, the tracker is ON. If no light comes on, the tracker is OFF.
Device Lights
Switch On
(Long press on power button)
Device is online
(Single press on power button)
Activate SOS mode
(Long press on SOS button)
Battery is charging
(Connect to power)
Device is powering off
(Press the power button for 3s)
Device is on but offline
(Single press on power button)
Low battery
